Do I need a permit for a retaining wall?

In most Minnesota jurisdictions, retaining walls over 4 feet in height require a building permit and engineered plans. Even smaller walls near property lines or buildings may require permits. We handle all permitting for our projects.

What type of retaining wall is best for Minnesota?

Segmental block walls and natural stone walls both perform well in Minnesota when properly engineered with drainage and frost protection. We recommend materials based on your aesthetic goals, budget, and site conditions.

How long do retaining walls last?

A properly constructed retaining wall can last 50-100 years. Key factors include proper drainage, adequate footing depth below the frost line, and quality materials. We engineer all our walls for Minnesota conditions.

Build Services

Professional Retaining Wall Construction in Minnesota

Solve grade changes, prevent erosion, and create usable space with professionally engineered retaining walls. Built to withstand Minnesota's freeze-thaw cycles and soil pressures, our walls combine structural integrity with landscape beauty.

Get Your Free Wall Estimate View Retaining Wall Projects

Professional retaining wall installation in Minnesota

Why Retaining Walls Require Professional Engineering in Minnesota

Retaining walls do more than hold back soil—they resist enormous lateral pressures that increase dramatically when that soil freezes, becomes saturated, or both. In Minnesota, where the frost line reaches 42-48 inches and clay soils expand significantly when wet, a wall that looks fine one summer can fail catastrophically after a single freeze-thaw season if not properly engineered.

The physics are unforgiving: a 4-foot wall retains approximately 400 pounds of lateral soil pressure per linear foot under normal conditions. Add frozen, saturated clay, and those forces can triple. This is why Minnesota building codes require engineering review for walls over 4 feet, and why professional installation is essential even for shorter walls.

Design Build Landscapes MN has constructed hundreds of retaining walls across the Twin Cities since 2008. We understand the soil conditions specific to each area—the heavy glacial clays of the western suburbs, the sandy soils near the St. Croix, the organic-rich soils in low-lying areas. Each project begins with proper site evaluation and ends with a wall engineered to last decades.

Wall Options

Retaining Wall Types

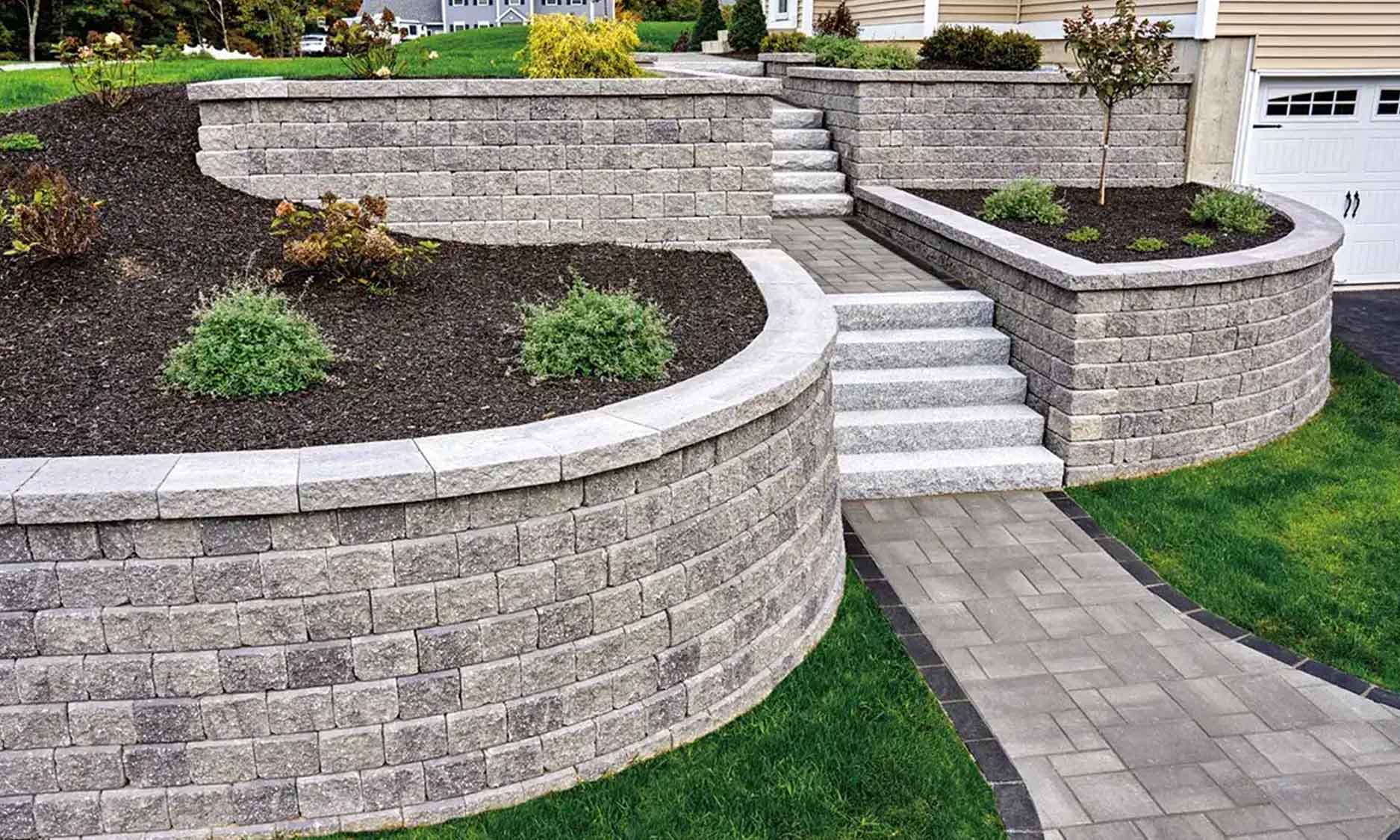

Segmental Block Walls

Engineered interlocking concrete blocks designed for structural performance. Available in various textures and colors to complement your landscape.

Cost-effective solution
Wide color selection
Engineered for loads
Easy to install

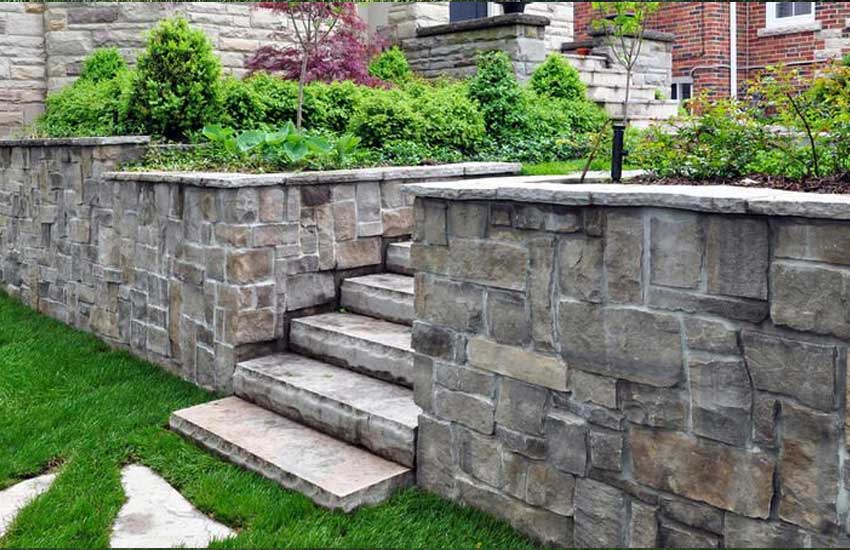

Natural Stone Walls

Authentic fieldstone, limestone, or granite walls that blend naturally with Minnesota landscapes. Premium aesthetics with timeless appeal.

Unique character
Natural appearance
Premium aesthetics
Increases property value

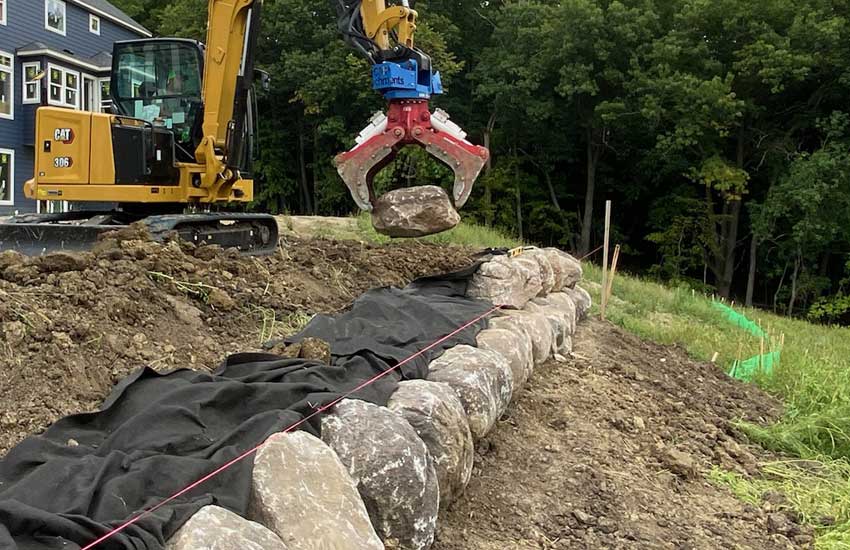

Boulder Walls

Large natural boulders stacked for rustic, organic appearance. Ideal for naturalistic settings and informal grade changes.

Organic look
Low maintenance
Natural drainage
Minimal footprint

Terraced Garden Walls

Multi-tiered walls that create planting terraces on slopes, combining structural function with garden space.

Creates planting areas
Manages steep slopes
Visual interest
Maximizes usable space

Material Selection

Premium Wall Materials

Versa-Lok Block

Premium pinned segmental units engineered for Minnesota. Available in various textures and colors.

Allan Block

Lip-style segmental units with positive connection. Wide variety of styles and colors available.

Limestone

$$$

Natural quarried limestone for elegant, traditional aesthetics. Excellent durability in our climate.

Fieldstone

$$$

Naturally weathered stones for rustic charm. Often sourced locally from Minnesota fields.

Granite Boulders

Large glacial granite boulders for natural, organic walls. Extremely durable and maintenance-free.

Outcropping Stone

$$$

Flat, ledge-style stones stacked for dramatic effect. Creates natural cliff appearance.

Engineering for Minnesota Conditions

Minnesota's freeze-thaw cycles create unique challenges for retaining walls. When water-saturated soil freezes behind a wall, it expands with tremendous force. Poor drainage allows water to accumulate, freeze, and push against the wall—often causing failure within a few seasons.

Our wall systems address this through comprehensive drainage design. Perforated drain tile runs behind and at the base of every wall, wrapped in filter fabric and surrounded by clean drainage aggregate. This ensures water never accumulates to freeze and exert pressure.

For walls over 4 feet, we use geogrid reinforcement—high-strength geosynthetic materials that tie the wall back into the retained soil. This creates a reinforced soil mass that resists lateral pressures far more effectively than the wall alone.

Our Engineering Standards

Compacted aggregate base below frost line
Perforated drain tile behind all walls
Clean drainage aggregate backfill
Geogrid reinforcement for taller walls
Proper setback (batter) for stability
Stamped engineering for walls over 4 feet

Soil Considerations

Clay Soils

Heavy clay requires extensive drainage and often geogrid reinforcement even for shorter walls due to high lateral pressures when wet.

Sandy Soils

Sandy soils drain well but may require deeper embedment and wider bases to prevent sliding or undermining.

Organic Soils

Low-lying areas with organic soils require removal and replacement with structural fill before wall construction.

Drainage: The Key to Wall Longevity

More retaining walls fail from poor drainage than from inadequate structural design. Water accumulating behind a wall creates hydrostatic pressure that dramatically increases loads. In winter, that water freezes and expands, multiplying forces even further.

Every wall we build includes a comprehensive drainage system: 4-inch perforated drain tile along the base, wrapped in filter fabric to prevent clogging, surrounded by clean drainage aggregate extending up behind the wall. Surface water is directed away with proper grading.

For severely wet sites or high water tables, we install additional drainage measures—weep holes through the wall face, supplemental drain lines, and connection to storm sewer systems where permitted.

Our Process

How We Build Lasting Walls

Site Evaluation

Assess soil conditions, drainage patterns, slope stability, and utility locations. Determine engineering requirements.

Excavation & Base

Excavate to proper depth, install compacted aggregate base, and place drainage tile behind wall location.

Wall Construction

Install wall units with proper setback, geogrid reinforcement at specified courses, and drainage aggregate backfill.

Completion

Install cap units, finish grading, establish drainage swales, and restore disturbed areas with vegetation.

Understanding Wall Investment

Wall Height

Cost increases significantly with height due to engineering requirements, base depth, and geogrid reinforcement. Walls over 4 feet require stamped engineering.

Material Selection

Segmental block is most economical ($25-45/sq ft face). Natural stone runs $40-80/sq ft. Boulder walls vary widely based on stone availability.

Site Access

Difficult access requiring hand-carrying materials, steep slopes, or extensive excavation all increase costs significantly.

Permit Requirements

Most Minnesota municipalities require building permits for retaining walls over 4 feet in exposed height. Some require permits for any wall regardless of height.

Walls over 4 feet require stamped engineering

Walls near property lines may require setbacks

Shoreland zones have special requirements

Drainage connections may require approval

Compare Your Options

Segmental Block vs. Natural Stone vs. Boulder Walls

Factor	Segmental Block	Natural Stone	Boulder Walls
Cost per Sq Ft (Face)	$25-45	$40-80	$30-60
Maximum Height	20+ ft with engineering	6-8 ft typical	4-6 ft typical
Aesthetic	Contemporary, uniform	Classic, elegant	Rustic, naturalistic
Best Application	Structural, tall walls	Feature walls, formal gardens	Natural settings, gentle slopes
Maintenance	Minimal - occasional cleaning	Occasional repointing	Virtually none

Each wall type serves different purposes. Segmental block excels for tall, engineered walls where structural performance is paramount. Natural stone creates elegant focal points in formal settings. Boulder walls blend seamlessly into naturalistic landscapes where organic appearance matters most.

Why Retaining Walls Fail in Minnesota

Understanding common failure modes helps homeowners recognize the importance of professional installation. The majority of wall failures we remediate stem from the same few root causes—all preventable with proper design and construction. These failures typically manifest within 3-7 years of installation, often requiring complete reconstruction rather than simple repairs.

Inadequate Drainage

Missing or undersized drain tile allows water to accumulate behind the wall, creating hydrostatic pressure that increases dramatically when frozen. This is the #1 cause of wall failure in Minnesota.

Insufficient Base Depth

Bases that don't extend below frost line allow walls to heave during freeze-thaw cycles. Properly embedded walls resist vertical movement that causes leaning and cracking.

Missing Geogrid Reinforcement

Walls over 4 feet without geogrid layers lack the soil reinforcement needed to resist lateral earth pressures, especially when that soil is saturated or frozen.

Clay Backfill

Using native clay as backfill instead of clean drainage aggregate creates a pocket that holds water and expands dramatically during freezing, pushing against the wall face.

Retaining Wall Construction Across the Twin Cities Metro

Our retaining wall crews serve homeowners throughout the Minneapolis–Saint Paul metropolitan area, with particular expertise in areas with challenging topography. The St. Croix Valley communities of Stillwater, Afton, and Marine on St. Croix feature dramatic bluffs that often require substantial wall systems to create usable yard space. We frequently work with natural limestone and fieldstone that complements the historic character of these riverfront communities.

The lake country suburbs of Minnetonka, Wayzata, and Oronopresent shoreline stabilization challenges where retaining walls must meet DNR regulations while preventing erosion and creating functional lakefront spaces. In Lake Elmo and White Bear Lake, similar considerations apply to properties adjoining these popular recreational waters.

Even on relatively flat properties throughout Woodbury, Eden Prairie,Maple Grove, and Blaine, retaining walls serve important functions—creating terraced planting beds, defining outdoor rooms, incorporating seating walls into patio designs, and managing drainage patterns. In Minneapolis and Saint Paul, space constraints often make vertical solutions essential for maximizing small urban lots.
